A1 Automatic UV Spot Partial Varnish Coating Anilox Roller Machine
About us:
EcooGraphix is a leading OEM factory of Laminating machines, UV coating machines,Spot Varnish coating machines , Die Cutting and Foil Stamping machines in China for more than 10 years, with hundreds of installations and thousands customers worldwide.
We mainly supply the varnish coating machines as below:
High speed automatic online full coating machines, partial spot coating machines, LED UV coating machine,anilox varnishing machine,manual feeding overall waterbased varnish coating machine and so on.
PRODUCT DESCRIPTION
The UV spot coating machine can do overall coating and partial reserved coating or spot varnishing, there 's the UV lamp curing system for UV coating and IR light system with hot air for waterbased varnishing.Speed can be 9500s/h.

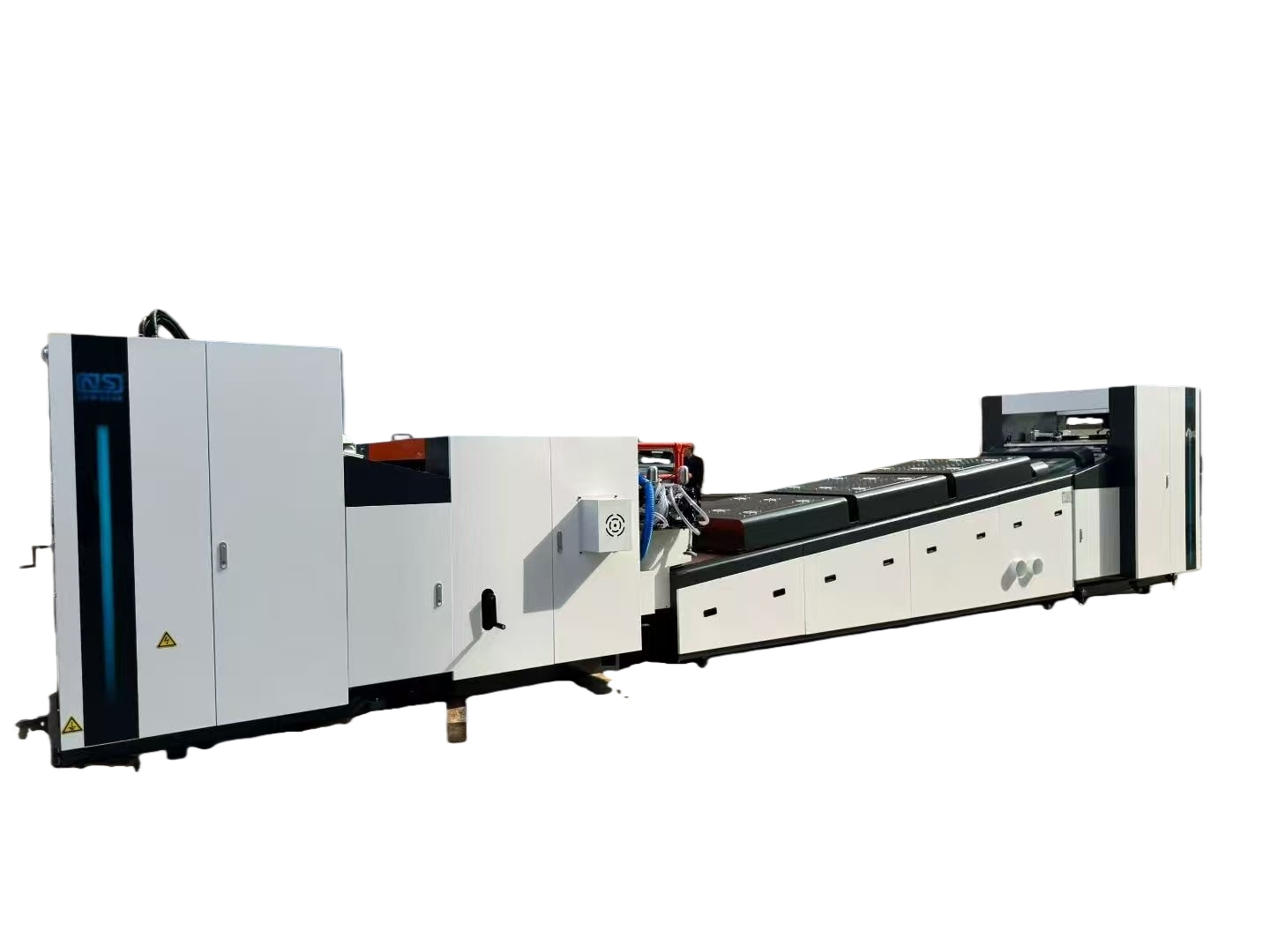

ECOO1060S is one of the best selling UV spot coating machine, it uses rubber roller with the printing blanket to do the full coating or partial reserved coating, uses the anilox roller with flexo plate to do the spot varnishing.
Options:
Non-stop Feeding and Delivery System including the Preloading Trolley
Separate Preloading Trolley
Ceramic Anilox Roller
Remote Monitoring
| Model | Ecoo 1060S |
| Max.sheet size | 730x1060mm |
| MIN.sheet size | 310X406mm |
| Max.coating size | 720x1050mm |
| Sheet thickness | 80-500gsm |
| Coating registration accuracy | ±0.2mm |
| Production speed | 9000sheets/hour |
| Weight | 8T |
| Dimension | 10460x2725x1930mm |
| Power | 44KW |
| Remark: Production speed depending on sheet weight, size and quality | |
IR Drying
There are double IR drying units with 24 IR tubes, for drying the water based varnish.
Divided into four groups of separate switches, freely take the power saving mode.
The lower suction by the conveying Teflon belt , makes the water evaporation fast, sheet varnishing more gloss.
